Chevelle and A-Body LS Swap Kit, 1968-1972

Parts for an LS swap into a 1968-1972 GM A-Body: the Muscle Rods conversion kit, mounts and Sure-Fit crossmember, mid-length and long tube headers, EFI fuel tanks for each model, aluminum radiators and high-clearance oil pans. The kit is listed for Chevelle, El Camino, GTO and Tempest, Cutlass and 442, and Skylark.

Made in the USA kit
4L60E to 4L80E fit with no tunnel work
Frame mounts use existing holes

Start with the 1968-1972 A-Body LS install guide, then build your kit.

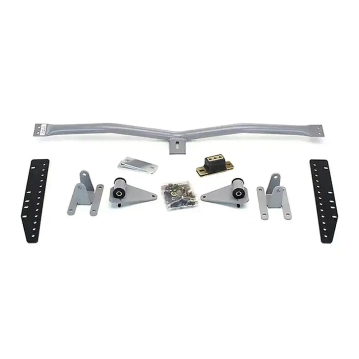

$539.00 1968-1972 A-Body LS Conversion Kit

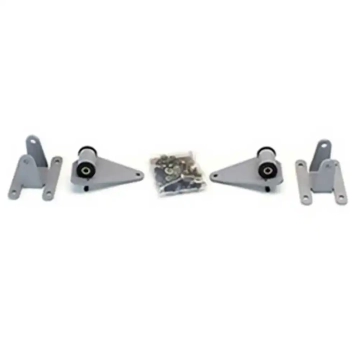

$299.00 1968-1972 A-Body LS Engine Mounts and Frame Bracket Kit

$309.00 1968-1972 A-body Sure-Fit Crossmember

$299.00 Cast Aluminum Retro LS Oil Pan Kit

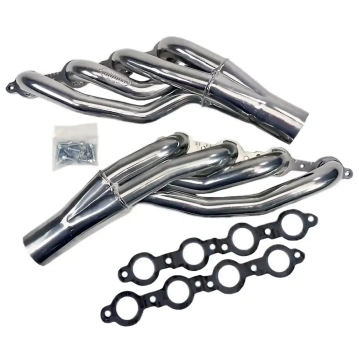

$742.30 1968-1972 A-Body LS 1-7/8 Ceramic Coated Mid-Length Headers

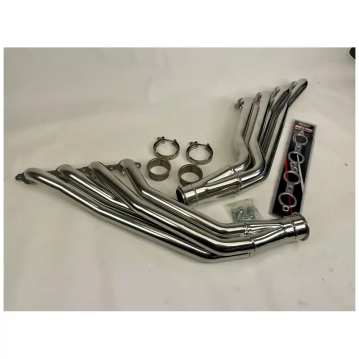

$939.00 1968-1972 A-body LS 1-7/8 Ceramic Coated Long Tube Headers

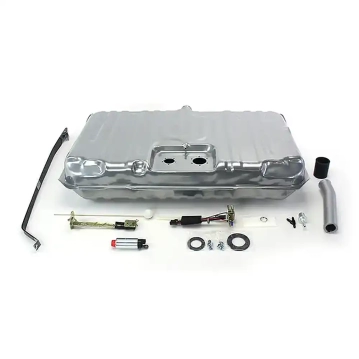

$586.00 1968-1969 Chevelle EFI Fuel Tank Kit - 255 LPH Pump

$649.00 1968-1969 Chevelle EFI Fuel Tank Kit - 400 LPH Pump

$586.00 1970-1972 Chevelle EFI Fuel Tank Kit - 255 LPH Pump

$649.00 1970-1972 Chevelle EFI Fuel Tank Kit - 400 LPH Pump

$586.00 1968-1969 Cutlass / Skylark EFI Fuel Tank Kit - 255 LPH Pump

$649.00 1968-1969 Cutlass / Skylark EFI Fuel Tank Kit - 400 LPH Pump

$586.00 1970 Skylark EFI Fuel Tank Kit - 255 LPH Pump

$649.00 1970 Skylark EFI Fuel Tank Kit - 400 LPH Pump

$586.00 1970-1972 Cutlass EFI Fuel Tank Kit - 255 LPH Pump

$649.00 1970-1972 Cutlass EFI Fuel Tank Kit - 400 LPH Pump

$586.00 1971-1972 Skylark EFI Fuel Tank Kit - 255 LPH Pump

$649.00 1971-1972 Skylark EFI Fuel Tank Kit - 400 LPH Pump

$586.00 1968-1970 GTO / Lemans EFI Fuel Tank Kit - 255 LPH Pump

1968-1972 A-Body LS swap parts

Conversion kit, mounts and crossmember

Headers and manifolds

EFI fuel tanks

Notched EFI fuel tanks

Notched for exhaust and tire clearance.

Radiators

Oil pans and oil system

What comes in the A-Body LS conversion kit

2 frame brackets
2 motor mounts
Transmission crossmember
2 crossmember outer brackets
Polyurethane transmission mount and spacers
Hardware pack

A-Body LS swap fitment notes

The kit is designed around a high-clearance oil pan that sits flush with the front crossmember and clears the steering center link tie rod ends. An LH8 pan hangs about 1.5 inches lower.
4L60E, 4L65E, 4L70E, 4L75E and 4L80E automatics fit the factory tunnel as is.
T-56, TR6060, 6L80E, 6L90E and 8L90E need the tunnel opened and widened, then closed with a filler panel.
High-mount A/C and alternator brackets are required to clear the frame.
When ordering, give year, make, model, body style (convertible or hardtop) and transmission. Crossmembers vary by type.
Headers suit a floor shifter. Column shift cars need linkage changes or a cable shifter.
Header installs may need the starter, valve covers or spark plugs removed.
The factory clutch Z-bar will not work with these kits, and the driveshaft may need a new length.

Notes from the 1968-1972 A-Body LS install guide.

1968-1972 A-Body LS swap FAQ

Which cars does the A-Body LS conversion kit fit?

1968-1972 Chevelle, El Camino, GTO and Tempest, Cutlass and 442, and Skylark.

Which oil pan works with the A-Body kit?

A high-clearance pan. It sits flush with the front crossmember and is needed to clear the steering center link tie rod ends. The Moroso High Clearance and Cast Aluminum Retro pans are listed on this page.

Do I have to cut the transmission tunnel?

Not with a 4L60E, 4L65E, 4L70E, 4L75E or 4L80E. A T-56, TR6060, 6L80E, 6L90E or 8L90E needs the tunnel opened and a filler panel. The install guide shows where to cut.

Which fuel tank should I pick?

Choose the tank listed for your model and years. Notched tanks add exhaust and tire clearance. The 255 LPH pump supports up to 550 hp, and the 400 LPH pump is for more power.
