1964-1972 GM Truck LS Hose and Line Kits

Fuel, cooler and steering lines for an LS in a 1964-1972 2WD GM truck, sized to BRP frame mount EFI tanks and the late model automatics this chassis takes.

Pairs with frame mount EFI tanks
Cooler kits for 4L60E to 10L90E
LS pump to box hose

Bed fill and side fill tanks for 1963-1966 and 1967-1972 trucks are on the 1964-1972 2WD GM Truck LS page. Tunnel notes come from the 1963-1972 GM truck LS install guide.

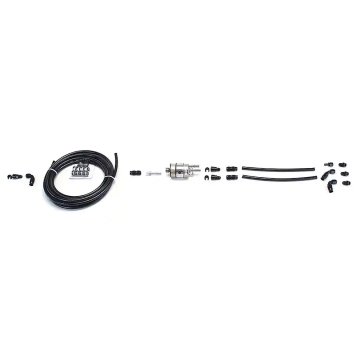

$399.00 Fuel Line and Regulator Kit - 255 LPH

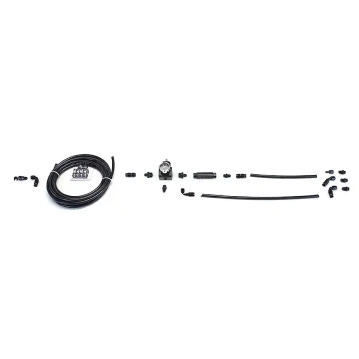

$795.00 Fuel Line and Regulator Kit - 400 LPH

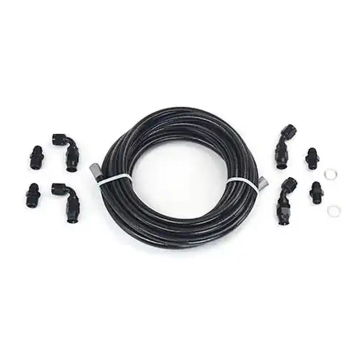

$265.00 Transmission Cooler Line kit - 4L60E

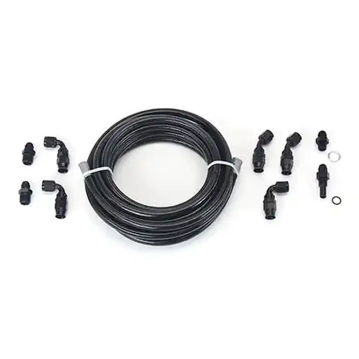

$285.00 Transmission Cooler Line Kit - 4L80E

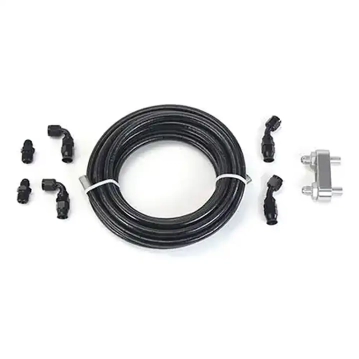

$299.00 Transmission Cooler Line Kit - 6L80E-10L90E

1964-1972 GM truck LS line kits

Fuel line kits, tank to rail

Cooler line kits for automatics

Steering hose for the LS pump

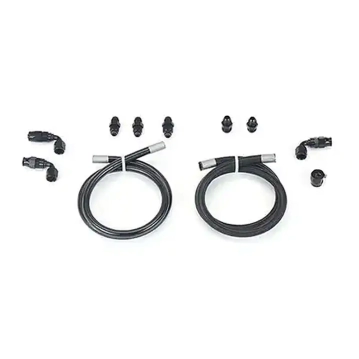

Power Steering Hose Kit

More for the 1964-1972 truck

What comes in the truck line kits

The fuel kits pair Teflon lined braided hose with clamps and every fitting needed from tank to rail.
With 6601-00 the regulator is a fixed 58 psi filter combo. With 6605-00 it adjusts and takes a boost reference.
Cooler kits are black covered stainless braided high pressure hose, cut to run from transmission to radiator.
The steering kit joins the LS pump to early or late style boxes.

1964-1972 truck line fitment notes

BRP truck tanks mount under the rear frame rails behind the axle, and mounting needs drilling.
The 255 LPH truck tanks are rated to 550 hp and the 400 LPH versions to 750 hp.
For the factory gauge, 1963-1966 tanks carry a 0-30 ohm sender and 1967-1972 tanks a 0-90 ohm sender.
The guide says most late model transmissions fit the factory tunnel without floor changes: 4L60E, 4L80E, 6L80E, 6L90E, 8L90E and six speed manuals.

Notes from the 1963-1972 GM truck LS install guide. Tank specs and line kit contents come from BRP product text.

1964-1972 C10 LS hose and line FAQ

Which line kit goes with a 1967-1972 truck tank with the 400 LPH pump?

6605-00. BRP built it for its 400 LPH tanks, with an adjustable regulator and a separate filter.

Which cooler kit fits an 8L90E in a 1964-1972 truck?

000-6630-89. It covers the 6L80E, 6L90E, 8L90E and 10L90E and includes a billet transmission manifold.

Does a bed fill or side fill tank change the line kit?

BRP does not list separate line kits by filler location. The choice follows the pump: 6601-00 for 255 LPH, 6605-00 for 400 LPH.

Will a 4L80E clear the tunnel in these trucks?

The guide lists the 4L80E among transmissions that fit without floor changes in most cases. Its cooler kit is 000-6630-80.
