1964-1972 2wd GM Truck LS Swap Kit Parts

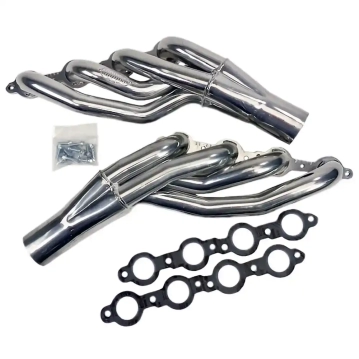

LS swap parts for 1964-1972 2WD Chevy C10 and GMC trucks: the Muscle Rods truck conversion kit, engine mounts and frame brackets, the 2WD crossmember, ceramic coated mid-length and long tube headers, frame mount EFI gas tanks for 1963-1966 and 1967-1972, and aluminum radiators.

  • Made in the USA kit
  • Late model automatics fit the stock tunnel
  • Works with the factory mechanical fan

Read the 1963-1972 GM truck LS install guide for bolt hole and bracket locations, then configure your truck kit.

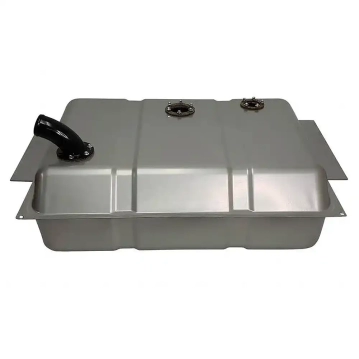

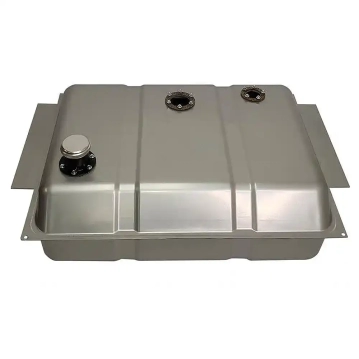

Gas tanks for 1963-1966 trucks

EFI ready 18 gallon tanks that mount under the rear frame rails behind the axle, with a 0-30 ohm sender for the factory gauge. Choose bed fill or side fill.

Gas tanks for 1967-1972 trucks

The same frame mount layout with a 0-90 ohm sender to match the later factory gauge, in bed fill or side fill.

Radiators for 1963-1966 trucks

Radiators for 1967-1972 trucks

Two core heights: 18.5 inch for standard cooling, or 20.75 inch for heavy duty cooling.

Oil pan and oil system

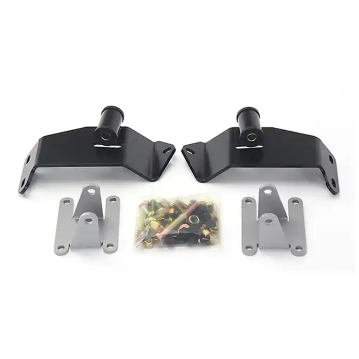

What comes in the GM truck LS conversion kit

  • 2 frame brackets
  • 2 motor mounts
  • Transmission crossmember
  • 2 crossmember side brackets
  • Polyurethane transmission mount
  • Bolt kit

1964-1972 C10 LS swap fitment notes

  • Two upper frame bracket bolts go into the front two holes on top of the frame. The lower bolt uses the rearmost hole in the K-member, which some years lack, so you may need to drill it.
  • The guide used a GM LH8 pan, which sits flush with the bottom of the lower control arm mount. Many factory GM pans also fit, but not the 2010-2017 LS Camaro pan.
  • Most late model transmissions go into the stock tunnel with no floor work: 4L60E, 4L80E, 6L80E, 6L90E, 8L90E and the 6-speed manuals.
  • Your transmission sets where the crossmember outer brackets sit fore and aft. Mount them 2.5 inches from the bracket bottom to the bottom of the frame lip and drill new 3/8 inch holes.
  • The factory truck mechanical fan lines up with the stock radiator shroud.
  • Some low mount LS A/C compressors can hit the frame. The guide suggests Kwik Performance accessory brackets if yours does.
  • Gas tanks bolt to the bottom of the rear frame rails and need drilling to mount. Each is internally baffled against starvation in braking and turns.
  • The 255 LPH tank pump supports up to 550 hp, and the 400 LPH pump up to 750 hp.

Fitment notes from the 1963-1972 GM truck LS install guide and the gas tank listings.

1964-1972 C10 LS swap FAQ

Do I have to cut the floor for a 4L80E or 6L80E?

No. The guide says most late model transmissions, including the 4L60E, 4L80E, 6L80E, 6L90E, 8L90E and 6-speed manuals, fit the factory tunnel without floor changes.

Can I keep my mechanical fan and shroud?

Yes. Per the guide, the factory truck mechanical fan lines up and fits with the stock radiator shroud.

Which gas tank matches my gauge?

Tanks for 1963-1966 trucks use a 0-30 ohm sender and tanks for 1967-1972 trucks use a 0-90 ohm sender, both made for the factory gauges.

Does the kit fit a Blazer or Jimmy?

The conversion kit lists 1969-1972 2WD Chevy Blazer and 1970-1972 2WD GMC Jimmy along with the 1963-1972 2WD C-10 and C-15.
