S10 LS Swap Kit and Parts, 1982-2004 2WD

Everything for an LS swap into a 1982-2004 two-wheel-drive S-10 or S-15 Sonoma pickup: the Muscle Rods conversion kit, engine mounts and frame brackets, Sure-Fit crossmembers, the LH8 oil pan, aluminum radiators with or without fans, and in-tank fuel pump kits.

Made in the USA
Uses existing frame holes on 1994-2003
Kit uses the LH8 oil pan

Step-by-step photos are in the 1982-2003 S-10 LS install guide. Ready to order? Build your S-10 kit.

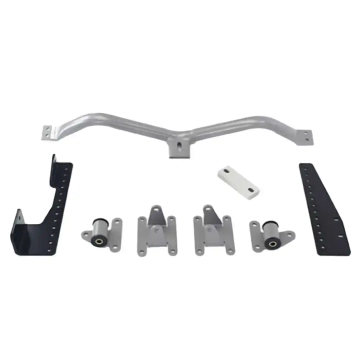

$539.00 1982-2004 S-10 Truck 2WD LS Conversion Kit

$299.00 1982-2004 S-10 LS Engine Mounts and Frame Bracket Kit

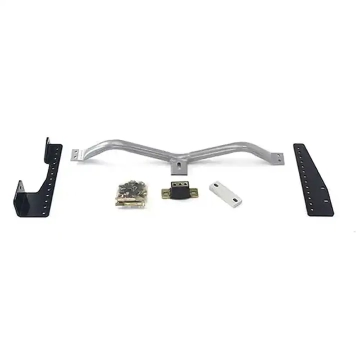

$309.00 1982-2004 S-10 Pickup Sure-Fit Crossmember

$309.00 1983-2005 S-10 Blazer Sure-fit Crossmember

$299.00 Cast Aluminum Retro LS Oil Pan Kit

$197.00 Fuel Pump and Fitting Kit 1987-1997

$231.00 Fuel Pump and Fitting Kit - Various 91-05 GM models

$297.00 340 LPH Fuel Pump and Fitting Kit - Various 91-05 GM models

$991.99 1982-2004 S-10 Truck Radiator (Auto Trans)

$885.99 1982-2004 S-10 Truck Radiator (Manual Trans)

$1,468.99 1982-2004 S-10 Truck Radiator with Fans (Auto Trans)

$1,362.99 1982-2004 S-10 Truck Radiator with Fans (Manual Trans)

1982-2004 S-10 2WD LS swap parts

Conversion kit, mounts and crossmembers

Oil pans and oil system

S-10 radiators

Aluminum LS conversion radiators for 1982-2004 S-10 trucks, for automatic or manual transmissions, bare or black epoxy coated. The fan versions add dual fans.

In-tank fuel pump kits

Pumps that mount on your existing sending unit, with fittings for the BRP fuel line kit. Listed for 1994-1995 S-10 pickups and for 1996-2005 S10.

What comes in the S-10 truck LS conversion kit

2 frame brackets
2 motor mounts
1 transmission crossmember
2 transmission crossmember brackets
Polyurethane transmission mount and spacers
Hardware pack

S-10 pickup LS swap fitment notes

On 1994-2003 trucks the frame brackets take the factory bolts and the crossmember brackets bolt to existing frame holes.
On 1982-1993 trucks the passenger crossmember bracket needs two 25/64 inch holes drilled, plus the supplied 1/4 inch spacer.
The passenger crossmember bracket sits a little higher than the driver side bracket. That is by design.
Certain transmissions need the body seam lip in the tunnel bent over for clearance.
To drop the engine and transmission in as one, loosen the body bolts and lift the body slightly.
With BRP headers, pull the steering shaft to fit the driver side header.
High-mount accessories are required, with a Corvette balancer and water pump suggested to leave radiator room. The stock low-mount A/C compressor will not work without heavy frame changes.

Notes from the 1982-2003 S-10 LS install guide.

S-10 2WD LS swap FAQ

Does this fit the GMC S-15 and Sonoma?

Yes. The kit is listed for 1982-2004 2WD Chevy S10 trucks and 1982-2004 2WD S15 and Sonoma trucks.

Will I need to drill the frame?

On 1994-2003 trucks, no: the crossmember brackets use existing holes. On 1982-1993 trucks the passenger crossmember bracket needs two holes drilled. The guide shows where.

Which oil pan does the S-10 kit use?

The LH8 oil pan. It is listed on this page.

What accessory drive works in an S-10?

A high-mount setup. The guide suggests a Corvette balancer and water pump, since Camaro and truck LS accessories reach far enough forward to interfere with the radiator and fan. BRP lists the Short drives on its S-10 accessory drive page.
