C1500 LS Swap Kit and Parts, 1988-1998 2WD

LS swap parts for 1988-1998 two-wheel-drive Chevy and GMC C1500 pickups: the Muscle Rods conversion kit, truck engine mounts and frame brackets, the 2WD Sure-Fit crossmember, mid-length and long tube headers, 28.25 and 34 inch core radiators, fuel pump kits and oil pans. The kit is also listed for 2WD Tahoe and Yukon.

Made in the USA
6L80E and 6L90E fit the stock tunnel
Muscle Rods headers bolt in

The 1988-1998 2WD GM Truck LS install guide has the parts list and photos. Build your C1500 kit when you are ready.

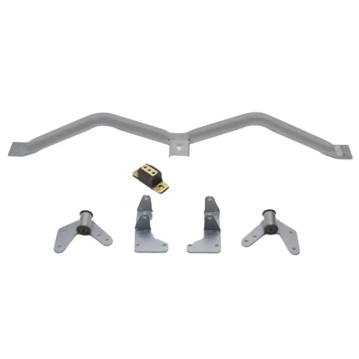

$529.00 1988-1998 2WD GM Truck LS Conversion Kit

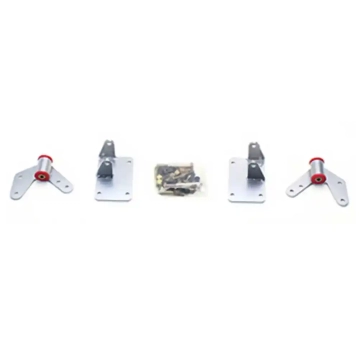

$299.00 1988-1998 2WD Truck LS Engine Mounts and Frame Bracket Kit

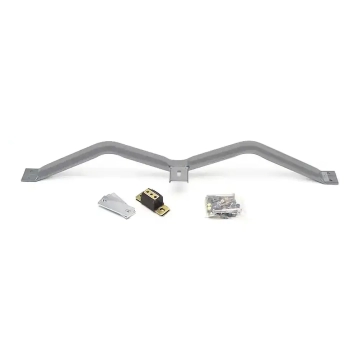

$309.00 1988-1998 GM Truck Sure-Fit Crossmember (2WD Only)

$299.00 Cast Aluminum Retro LS Oil Pan Kit

$197.00 Fuel Pump and Fitting Kit 1987-1997

$231.00 Fuel Pump and Fitting Kit - Various 91-05 GM models

$297.00 340 LPH Fuel Pump and Fitting Kit - Various 91-05 GM models

$890.99 1988-1995 LS Radiator 28.25" Core Width (Manual Trans)

$996.99 1988-1995 LS Radiator 28.25" Core Width (Auto Trans)

$1,593.99 1988-1995 LS Radiator 28.25" Core Width (Manual Trans) with Fans

$1,699.99 1988-1995 LS Radiator 28.25" Core Width (Auto Trans) with Fans

$900.99 1988-1993 LS Radiator 34" Core Width (Manual Trans)

$1,006.99 1988-1993 LS Radiator 34" Core Width (Auto Trans)

$1,677.99 1988-1993 LS Radiator 34" Core Width (Manual Trans) with Fans

$1,804.99 1988-1993 LS Radiator 34" Core Width (Auto Trans) with Fans

$299.00 Cast Iron Exhaust Manifolds for LS Engines

$939.00 1988-1998 2WD Truck LS 1-7/8 Ceramic Coated Long Tube Headers

$742.30 1988-1998 2WD Truck LS 1-7/8 Ceramic Coated Mid-Length Headers

1988-1998 2WD GM truck LS swap parts

Conversion kit, mounts and crossmember

Headers and manifolds

Radiators, 28.25 inch core

Listed for 1988-1995 C1500, K1500, Tahoe, Suburban and Yukon.

Radiators, 34 inch core

Listed for 1988-1993 C1500, K1500 and Suburban.

Fuel pump kits

In-tank pumps that go onto the existing sending unit: Walbro 255 LPH for 1987-1997 GM trucks, or Walbro 255 or Aeromotive 340 LPH for 1998 full-size trucks.

Oil pan and oil system

What comes in the 2WD GM truck LS conversion kit

2 frame brackets
2 motor mounts
Transmission crossmember
2 outer crossmember brackets
Polyurethane transmission mount and spacers
Hardware pack

C1500 LS swap fitment notes

The kit is built for the BRP LH8 oil pan kit.
A stock LS truck pan bolts up too, but it hangs about an inch below the frame. Skip it on a lowered truck.
Large-case 6L80E and 6L90E automatics need no tunnel modifications.
LS truck intake and exhaust manifolds fit this chassis.
The factory mechanical fan from an LS truck engine lines up with the C1500 fan shroud.
LS truck-style alternator and power steering units fit this chassis well.
No low-mount A/C compressor clears the frame, so the build needs a high-mount A/C kit.
The outer crossmember brackets go on with the narrow tapered end toward the rear of the truck.
The Multi-Fit mount kit is for trucks with the OEM Chevrolet clamshell frame mount and works with the Sure-Fit crossmember and mid-length headers.

Notes from the 1988-1998 2WD GM Truck LS install guide and the Multi-Fit mount listing.

1988-1998 2WD C1500 LS swap FAQ

Which trucks does the 2WD kit fit?

1988-1998 2WD Chevy and GMC C1500 pickups. The kit listing also names 2WD Chevy Tahoe and GMC Yukon.

Can I run the oil pan from my LS truck engine?

Yes, but it sits about 1 inch below the frame, so it is not suggested for lowered trucks. The kit is designed for the LH8 pan.

Will a 6L80E fit without cutting the floor?

Yes. The guide says large-case 6L80E and 6L90E transmissions fit the tunnel with no modifications.

Which radiator fits my truck?

The 28.25 inch core radiators are listed for 1988-1995 trucks and the 34 inch core for 1988-1993. Each comes for automatic or manual transmissions, with or without fans.

1988-1998 2WD GM Truck LS Swap Kit Parts
