C2 Corvette LS Swap Kit, 1963-1967

LS swap parts for the 1963-1967 C2 Corvette: the Muscle Rods conversion kit, engine mounts shared with the C3, ceramic coated mid-length headers, oil pan options, EFI fuel tanks made for the C2, and pin-mount aluminum radiators.

Made in the USA kit
Mounts use the factory frame perches
Headers clear T-56 and 4L60E

Go through the 1963-1967 Corvette LS install guide for pan and A/C choices, then build your Corvette kit.

$529.00 1963-1967 Corvette LS Conversion Kit

$299.00 1963-1982 Corvette LS Engine Mount Kit

$299.00 Cast Aluminum Retro LS Oil Pan Kit

$742.30 1963-1982 Corvette 1-7/8 Ceramic Coated LS Mid-Length Headers

$670.00 1963-1967 Corvette EFI Fuel Tank Kit - 255 LPH Pump

$750.00 1963-1967 Corvette EFI Fuel Tank Kit - 400 LPH Pump

$1,017.99 1963-1972 Corvette Pin-Mount Radiator (Auto Trans)

$911.99 1963-1972 Corvette Pin-Mount Radiator (Manual Trans)

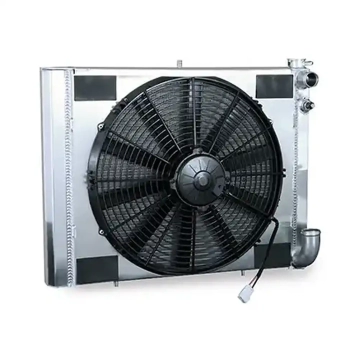

$1,489.99 1963-1972 Corvette Pin-Mount Radiator (Auto Trans) with Fan

$1,383.99 1963-1972 Corvette Pin-Mount Radiator (Manual Trans) with Fan

1963-1967 Corvette LS swap parts

Conversion kit, mounts and headers

Oil pans and oil system

EFI fuel tanks

Tanks made for the 1963-1967 Corvette with an in-tank pump module, Walbro pump, sending unit, straps, vent filter, gaskets and hardware. The 255 LPH kit is good to 550 hp; step up to the 400 LPH kit for boost or more power.

Pin-mount radiators

Aluminum LS conversion radiators listed for 1963-1972 Corvettes, for automatic or manual cars. The fan versions come with a single 16 inch fan installed.

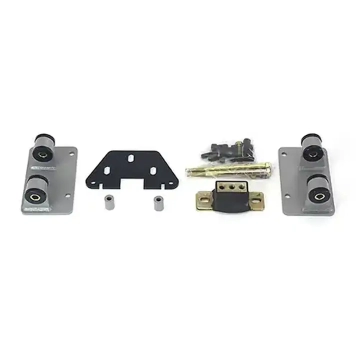

What comes in the 1963-1967 Corvette LS conversion kit

2 motor mounts
Transmission crossmember bracket
2 crossmember bracket spacers
Polyurethane transmission mount
Hardware pack

C2 Corvette LS swap fitment notes

The motor mounts drop onto the frame mount perches already in the car and take 7/16 x 6-1/2 inch bolts. Use the large flat washers on both sides of the polyurethane bushings so they stay in place under load.
The kit and headers are made for the F-Body oil pan or the Cadillac CTS-V pan. The F-Body pan gives a bit more ground clearance but does not clear the factory power assist slave cylinder.
Plan on 1998-2002 F-Body accessories.
A low mount A/C compressor will not clear the frame. Running A/C takes a Kwik Performance top mount bracket.
The headers work with the T-56, 4L60E and 4L65E. The mid-length headers have ball and socket collectors and O2 bungs.
The crossmember bracket uses the rear two bolt holes for a T-56.
Some later transmission crossmembers lack the right mounting tabs and may need to be swapped for an earlier crossmember, which can mean welding.
Expect a new driveshaft length. The factory clutch Z-bar will not work with the kit.
Header fitting can require pulling the starter, a valve cover or spark plugs.

Notes from the 1963-1967 Corvette LS install guide.

1963-1967 Corvette LS swap FAQ

Which oil pan works in a C2 Corvette LS swap?

The guide names two: the F-Body pan, which gives more ground clearance, and the Cadillac CTS-V pan. The F-Body pan does not clear the factory power assist slave cylinder.

Can I keep A/C in my 1963-1967 Corvette?

Yes, with a top mount compressor. The guide says a low mount compressor hits the frame, so it points to a Kwik Performance top mount bracket.

Which transmissions do the headers clear?

The guide lists the T-56, 4L60E and 4L65E for the headers.

Are the engine mounts the same as the C3 Corvette mounts?

The engine mount kit and the mid-length headers on this page are both named for 1963-1982 Corvettes.
