1963-1972 C10 LT Swap Parts, 2WD Truck

LT swap parts for 1963-1972 two wheel drive Chevy and GMC trucks: the Muscle Rods C10 LT mount and crossmember kit, LT engine mounts with frame brackets, the 2WD crossmember, 1-7/8 inch ceramic coated LT headers in long tube and mid-length, the cast aluminum LT oil pan kit, frame mount EFI gas tanks with a 400 LPH pump, the 400 LPH line kit, aluminum radiators for 1963-1966 and 1967-1972 trucks, mount adapters and LT accessory brackets.

LT long tubes made in the USA
Bed fill or side fill EFI tanks
Separate 1963-1966 radiators

Build the truck in the LT swap kit builder. Square body owner? See 1973-1987 2WD GM Truck LT. LS swap instead? Go to 1964-1972 2WD GM Truck LS.

$599.00 1964-1972 C10 Truck LT Conversion Kit

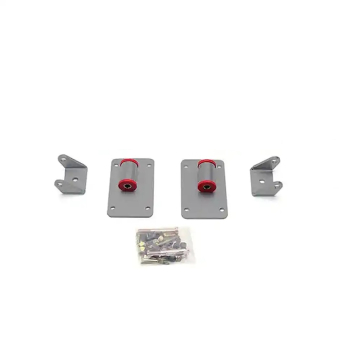

$349.00 1964-1972 GM Truck LT Engine mounts and frame brackets (only)

$309.00 1964-1972 GM Truck Crossmember (2WD Only)

$979.00 1963-1972 GM Truck LT Series 1-7/8 Ceramic Coated Long Tube Headers

$669.00 1963-1966 Chevy Truck Frame Mount Gas Tank - Bed Fill - 400 LPH Pump

$669.00 1963-1966 Chevy Truck Frame Mount Gas Tank - Side Fill - 400 LPH Pump

$669.00 1967-1972 Chevy Truck Frame Mount Gas Tank - Bed Fill - 400 LPH Pump

$669.00 1967-1972 Chevy Truck Frame Mount Gas Tank - Side Fill - 400 LPH Pump

$795.00 Fuel Line and Regulator Kit - 400 LPH

$885.99 1963-1966 GM Truck Radiator (Manual Trans)

$991.99 1963-1966 GM Truck Radiator (Auto Trans)

$1,362.99 1963-1966 GM Truck Radiator (Manual Trans) with Fans

$1,468.99 1963-1966 GM Truck Radiator (Auto Trans) with Fans

$991.99 1967-1987 GM Truck Radiator 18.5" Tall (Auto Trans)

$885.99 1967-1987 GM Truck Radiator 18.5" Tall (Manual Trans)

$1,362.99 1967-1987 GM Truck Radiator 18.5" Tall (Manual Trans) with Fans

$1,468.99 1967-1987 GM Truck Radiator 18.5" Tall (Auto Trans) with Fans

$1,468.99 1967-1987 GM Truck Radiator 20.75" Tall (Auto Trans) with Fans - HD Cooling

$1,362.99 1967-1987 GM Truck Radiator 20.75" Tall (Manual Trans) with Fans - HD Cooling

1963-1972 2WD GM truck LT swap parts

Conversion kit, LT mounts and crossmember

LT headers and oil pan

Frame mount EFI gas tanks and line kit

1963-1966 truck radiators

1967-1972 truck radiators, 18.5 inch

1967-1972 truck radiators, 20.75 inch HD cooling

Transmission mount adapters

LT accessory brackets

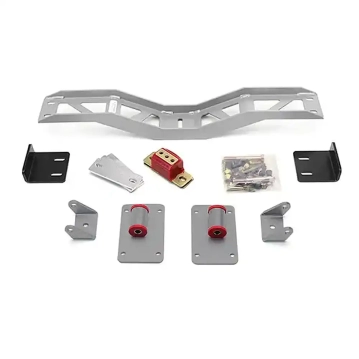

What comes in the C10 LT conversion kit

Engine mounts
Frame brackets
Crossmember
Transmission mount
All hardware

1963-1972 truck LT fitment notes

BRP names the LTX1 kit for 1964-1972 C10 trucks and describes it as a GM truck LT mount and crossmember kit.
The crossmember sold on its own is marked 2WD only.
The LT long tubes list the 1963-1972 Chevy C-10 and GMC C-15, the 1969-1972 2WD K5 Blazer, the 1970-1972 2WD Jimmy and the 1963-1972 2WD Suburban.
Those long tubes have 3/8 inch flanges, come with gaskets and bolts, and are designed for use with the Muscle Rods mount kit.
The EFI tanks are custom mounted under the rear frame rails behind the axle, and mounting requires drilling.
Each tank holds 18 gallons, is internally baffled and carries a Walbro 400 LPH pump that BRP rates up to 750 hp.
Sending units match the factory gauges: 0-30 ohm on the 1963-1966 tanks and 0-90 ohm on the 1967-1972 tanks.
Radiators come in automatic or manual versions, bare or with dual fans installed.

Fitment is taken from the BRP product listings. No 1963-1972 GM truck LT install guide is posted, so tunnel, oil pan and steering clearance are not covered here.

1963-1972 GM truck LT swap FAQ

What is in the LTX1 C10 LT conversion kit?

Engine mounts, frame brackets, a crossmember, a transmission mount and all hardware, per its BRP listing.

Which fuel tank fits my 1963-1972 truck?

Pick by year and filler. The 1963-1966 and 1967-1972 tanks each come in bed fill and side fill, all with a 400 LPH pump and the sending unit for the factory gauges.

Do the LT headers fit a 2WD Blazer or Suburban?

The long tubes list the 1969-1972 2WD K5 Blazer, 1970-1972 2WD Jimmy and 1963-1972 2WD Suburban, along with the C-10 and C-15.

Is there a 1963-1972 truck LT install guide?

Not yet. The LT guides BRP has posted are for the 1973-1977 A-Body and 1994-1996 B-Body.
