1973-1987 2WD GM Truck LT Swap Kit Parts

LT swap parts for 1973-1987 half ton 2WD Chevy and GMC square body trucks: the Muscle Rods truck LT mount and crossmember kit, LT engine mounts with frame brackets, the 2WD crossmember, 1-7/8 inch ceramic coated LT headers in long tube and mid-length, the cast aluminum LT oil pan kit, 400 LPH EFI tanks by bed length, radiators in two core heights, transmission mount adapters and LT accessory brackets.

  • Kit for 1/2 ton 2WD trucks
  • LT long tube and mid-length headers
  • Tanks for 6 and 8 foot beds

Put your truck together in the LT swap kit builder. Running an LS? See 1973-1987 2WD GM Truck LS.

400 LPH EFI fuel tanks

Fuel line and regulator kit

Radiators, 18.5 inch standard cooling

Radiators, 20.75 inch HD cooling

Transmission mount adapters

LT accessory brackets

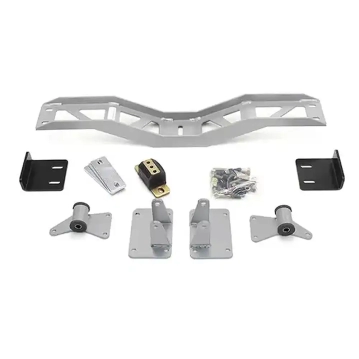

What comes in the 1973-1987 truck LT kit

  • Engine mounts
  • Frame brackets
  • Crossmember
  • Crossmember brackets
  • Transmission mount
  • All hardware

1973-1987 GM truck LT fitment notes

  • BRP lists the LTX9 kit for 1973-1987 GM half ton two wheel drive trucks.

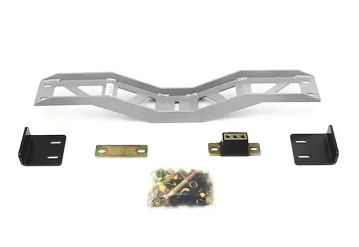

  • The crossmember on this page is marked 2WD only.
  • The LT long tube headers list the 1973-1987 Chevy C-10 and GMC C-15, plus 1973-1991 2WD Blazer, Jimmy and Suburban.

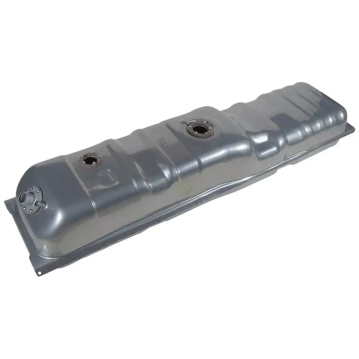

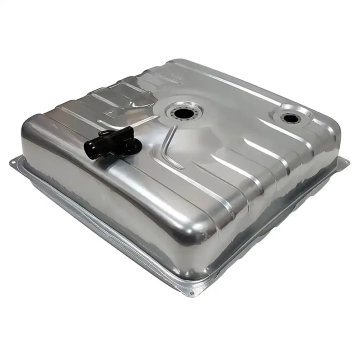

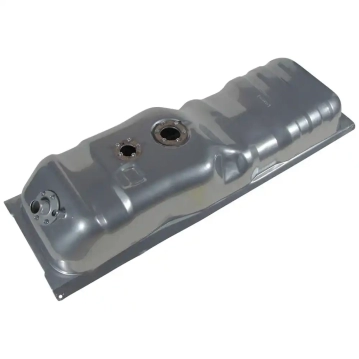

  • Tank kits come for a 6 foot bed, an 8 foot bed, or a 1973-1991 Blazer, Suburban or Jimmy.
  • Each tank kit holds an in-tank module with a 400 LPH pump, sending unit, straps, vent filter, gaskets and hardware.
  • BRP sizes the 400 LPH pump for supercharged trucks or builds over 550 hp.
  • Choose the 18.5 inch radiator for standard cooling or the 20.75 inch for heavy duty cooling, each for automatic or manual and with or without fans.

Fitment is taken from the product listings. BRP has not posted a 1973-1987 GM truck LT install guide, so transmission tunnel and oil pan clearance are not covered here.

1973-1987 GM truck LT swap FAQ

Does the LTX9 kit fit a 4WD square body?

No. BRP lists it for 1973-1987 half ton 2WD trucks, and the crossmember is marked 2WD only.

Which LT headers fit a 1973-1987 C10?

Two 1-7/8 inch ceramic coated styles are listed: long tube and mid-length. The long tubes also list 1973-1991 2WD Blazer, Jimmy and Suburban.

Which fuel tank does my truck need?

Match the bed: there is a 6 foot bed kit and an 8 foot bed kit. Blazer, Suburban and Jimmy owners use the 1973-1991 kit. All three carry a 400 LPH pump.

Is there an install guide for the truck LT swap?

Not yet. BRP posts LT guides for the 1973-1977 A-Body and 1994-1996 B-Body; a 1973-1987 truck LT guide is not listed.
