1988-1998 4WD GM Truck LT Swap Kit Parts

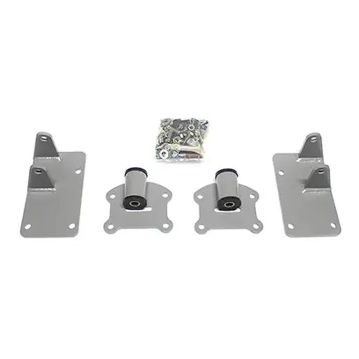

LT swap parts for 1988-1998 four wheel drive Chevy and GMC trucks: the 4WD LT engine mount and frame bracket kit for half and three quarter ton OBS trucks and 1992-1999 SUVs, the cast aluminum LT oil pan kit, an Aeromotive 340 LPH pump kit for your stock sending unit, the 400 LPH fuel line and regulator kit, aluminum radiators in 28.25 and 34 inch core widths, transmission mount adapters and LT accessory brackets.

  • Mounts for 4WD 1/2 and 3/4 ton
  • Radiators in two core widths
  • Pump kit uses your sending unit

Add your truck to the LT swap kit builder. Two wheel drive OBS? See 1988-1998 2WD GM Truck LT. LS engine instead? Go to 1988-1998 4WD GM Truck LS.

Radiators, 28.25 inch core (1988-1995)

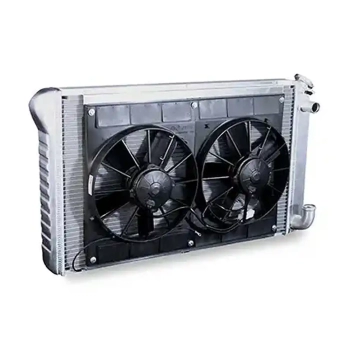

Radiators, 34 inch core (1988-1993)

Transmission mount adapters

LT accessory brackets

What comes in the 400 LPH fuel line kit

  • PTFE stainless braided line with black cover
  • Adjustable fuel pressure regulator
  • Vacuum and boost port on the regulator
  • Two piece screw together rail fitting
  • Fuel filter and line clamps
  • Fittings and connectors

1988-1998 4WD truck LT fitment notes

  • The 423-1402-00 kit is listed for LT engines in 1988-1998 GM 4WD half and three quarter ton trucks and 1992-1999 SUVs.
  • No 4WD LT conversion kit, crossmember or LT header is offered on this page yet.
  • The Aeromotive 340 LPH pump goes onto your existing sending unit, and its listing names the 1998 GM full size truck.
  • BRP built the 400 LPH line kit for returnless fuel rails.
  • The 28.25 inch core radiators list 1988-1995 C1500, K1500, Tahoe, Suburban and Yukon. The 34 inch core versions list 1988-1993 C1500, K1500 and Suburban.
  • Each radiator comes bare or black epoxy coated, and fans come installed on the versions sold with fans.
  • The 6L90E adapter is for the 2009-2014 CTS-V tailshaft; the 8L90E adapter also takes a 10L90E.

Fitment comes from the BRP product listings. BRP has not posted a 1988-1998 4WD truck LT install guide, so front axle, tunnel and oil pan clearance are not covered here.

1988-1998 4WD GM truck LT swap FAQ

Do the 4WD LT mounts fit a K2500?

BRP lists the mount and frame bracket kit for 4WD half ton and three quarter ton trucks from 1988-1998, plus 1992-1999 SUVs.

Is there a 4WD OBS LT conversion kit with a crossmember?

Not on this page. The mounts and frame brackets are the only 4WD LT chassis part listed so far.

Which radiator fits a 1996-1998 K1500?

None of the radiators here lists 1996-1998 trucks. The 28.25 inch core stops at 1995 and the 34 inch core at 1993.

Is there a 4WD OBS truck LT install guide?

Not yet. The 1988-1998 4WD truck guide BRP posts is written for the LS swap.
